ODM 105um Fibre Laser Module 100w Laser Diode Module

Wuhan CS Tec Co.,Ltd

ODM 105um Fibre Laser Module 100w Laser Diode Module

  • 1
  • 2
  • 3

Brand Name : SkyEra

Model Number : 100W 793nm 105um

Certification : CE

Place of Origin : China

MOQ : 1

Price : Can be negotiation

Payment Terms : L/C, D/A, D/P, T/T

Brand : SkyEra

Application : bump source material processing

Output power (W) : 100W 793nm 105um

Local Service Location : None

warranty period : 1 year

After Warranty Service : Online support Spare parts Field maintenance and repair service

Contact Now

Product specification

Functional parameters are tested on condition that the heat sink temperature is 25 degree, contact resistance of the component and the heat sink is smaller than 1CM2 K/W.

Parameter Min Typ Max Unit Conditions
Output Power 95 100 - W

Centre Wavelength T320W

790

793

796

nm

Spectral Width (FWHM) - 4.5 6 nm
Threshold Current - 0.75 1.0 A
Operating Current - 6.0 6.5 A
Operating Voltage - 35.0 38.0 V
Convention Efficiency - 40 - %
95% Power - 0.18 - NA
Wavelength shift vs. Temperature - 0.3 - nm/℃
Slop Efficiency - 16.0 - W/A
Storage Temperature -30 25 70 °C Non-Condensing
Operating Temperature 15 25 55 °C
Fiber Bend Radius 50 - - mm
Core Diameter 102 105 108 μm
ISO - 30 - dB 1900-2100nm
Numeric Aperture 0.2 0.22 0.24 -
Fiber length 0.9 1.5 - M
Protection Tube 0.9 - 1.5 mm
Fiber Connector - CO - -

Product Tags:

ODM fibre laser module



100w fibre laser module



ODM 100w laser diode module

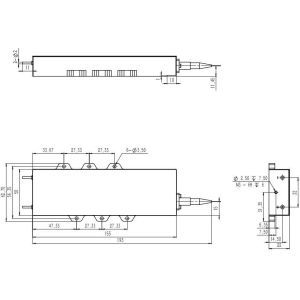

Best ODM 105um Fibre Laser Module 100w Laser Diode Module wholesale
